Touchable Screen Gas Detector Controller Multi - Channels With Diffusion Sampling

Name: Touchable Screen Gas Detector Controller Multi Channels With Diffusion Sampling
Brand: Bosean
Price: 60 USD

Wholesale Touchable Screen Gas Detector Controller Multi - Channels With Diffusion Sampling from china suppliers

Brand Name : Bosean

Model Number : BH-50

Certification : CE,FCC,ATEX,ROHS,SIL

Place of Origin : Zhengzhou,Henan,China

MOQ : 1pcs

Price : USD60-220/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PCS/DAY

Delivery Time : 3-8 WORK DAYS

Packaging Details : each set detector alarm will be packed with the export standard carton package or aluminum box or as per customer require

Product Name : Bh-50 Fixed Combustible Gas Detector

Working Voltage : 15~30VDC

Sampling : Diffusion

Sensor : Catalytic Sensor or Imported British Sensor

Safe Degree : Intrinsically Safe

Response Time : <30s

Output Signal : 4-20mA/RS485

Indication : LED

Contact Now

Multi-Channels Touchable Screen Gas Control Panel Fixed Gas Detector Sensor gas alarm controller

Description

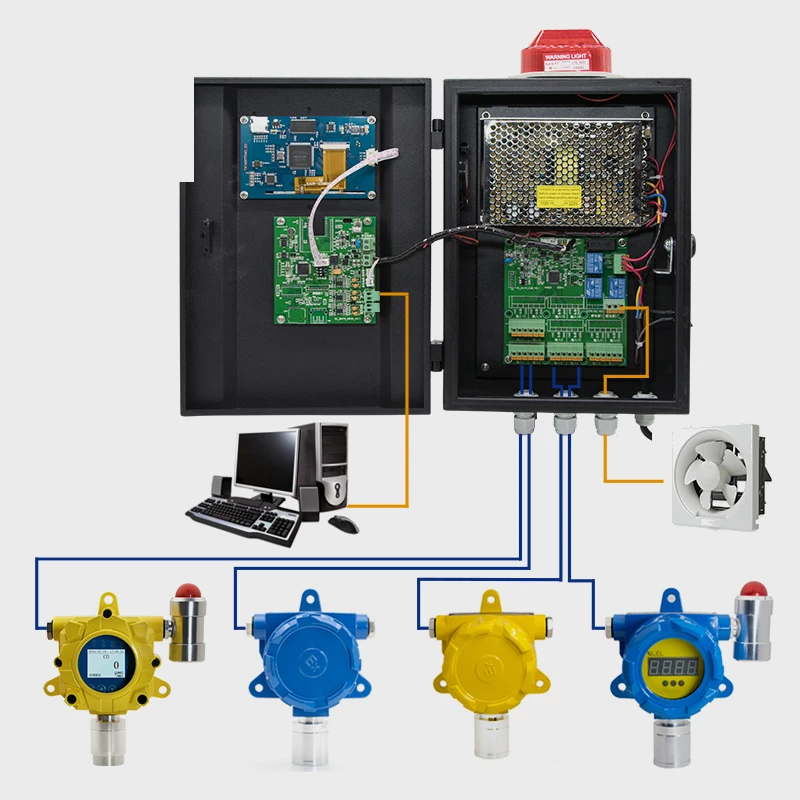

BH-50 Gas Monitor System is a multipoint controller system. It is used for detecting gas concentration in the air.The system could connect to detectors for different gases in the same time. The system adopts MCU as control unit,excellent gas sensor with high sensitivity and fast response.It will give visual and audible alarm when the gas concentration reach or exceed the presetting alarm level to remindyou to take effective actions in time and it could also start the ventilation fan and other equipment to prevent from accident and explosions.

Touchable Screen Gas Detector Controller Multi - Channels With Diffusion Sampling

Parameters

Product type	BH-50 Gas controller
Channel	Single channel,two channels,four channels
Power supply:	AC220V±10% 50Hz
Consumption:	≤10W
Signal input:	4~20mA and RS485
Single output:	two lines RS485(MODBUS)
Working temperature	-10ºC~50ºC
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Installation method:	Wall-mounted
Dimensions	380x210x80mm(L×W×H)

Application
Touchable Screen Gas Detector Controller Multi - Channels With Diffusion Sampling
Our customers and patent certificate

Touchable Screen Gas Detector Controller Multi - Channels With Diffusion Sampling

Measurable Gas Meter

Model	Range	L-alarm	H-alarm
CO	0-1000ppm	35ppm	200ppm
O2	0-30%vol	19.5%vol	23.5%vol
H2	0-100%LEL	20%LEL	50%LEL
H2S	0-100ppm	10ppm	20ppm
CH4	0-100%LEL	20%LEL	50%LEL
C2H4O	0-20ppm	10ppm	15ppm
C2H4	0-100%LEL	20%LEL	50%LEL
C3H8	0-100%LEL	20%LEL	50%LEL
C2H5OH	0-100%LEL	20%LEL	50%LEL
NH3	0-100ppm	25ppm	50ppm
CL2	0-20ppm	5ppm	10ppm
O3	0-20ppm	5ppm	10ppm
SO2	0-100ppm	2ppm	5ppm
PH3	0-20ppm	0.3ppm	5ppm
CO2	0-50000ppm	1000ppm	2000ppm
NO	0-250ppm	20ppm	50ppm
NO2	0-20ppm	5ppm	10ppm
HCN	0-500ppm	10ppm	20ppm
HCL	0-50ppm	10ppm	20ppm
CH2O	0-10ppm	2ppm	5ppm
VOC	0-100ppm	20ppm	50ppm
C6H6	0-100ppm	20ppm	50ppm

Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.
